Modern computer networking uses special hardware to connect devices. These solutions are key to today’s digital world.
A network switch is smart in local area networks. It’s different from simple hubs because it checks data packets. Then, it sends them to the right place.
This smart way of data transmission boosts network speed. Switches avoid traffic jams by making direct paths for data between devices.
These vital LAN devices work at the data link layer. Their smart choices are key to fast network switching.
Using switches well makes networks better. Companies get faster, more reliable internal talks with smart setup.
Understanding Network Switches: The Backbone of Modern Connectivity
Network switches are key in today’s digital world. They help devices talk to each other smoothly. These smart devices are the heart of fast data sharing in all kinds of networks.
Defining the Network Switch
A network switch works at the data link layer (Layer 2) of the OSI model. Unlike simple devices, switches know how to send data to the right device. They use MAC addresses for this.
This smart way of sending data cuts down on network jams. It makes networks run better. Today, switches are a must for both small and big offices.
Historical Evolution of Switching Technology
Switching tech has changed a lot over the years. In the 1990s, Ethernet switching became the top choice.
Big steps forward include:
- Store-and-forward switching (1990s)
- Cut-through switching technology
- Managed switching capabilities
- Power over Ethernet integration
These changes turned simple connections into smart network systems.
Fundamental Purpose in Network Infrastructure
Network switches are all about getting data where it needs to go fast. They make special paths for data to travel, avoiding mix-ups.
They look at packet headers to find the best way to send data. This happens at the data link layer. It makes sure data gets to its destination quickly and safely.
| Network Component | Operation Layer | Primary Function | Intelligence Level |
|---|---|---|---|
| Network Switch | Data Link Layer (L2) | MAC Address Forwarding | High |
| Network Hub | Physical Layer (L1) | Data Broadcasting | None |
| Router | Network Layer (L3) | IP Address Routing | Very High |
This table shows how switches are special in networks. They offer the right mix of smarts and speed for most needs.

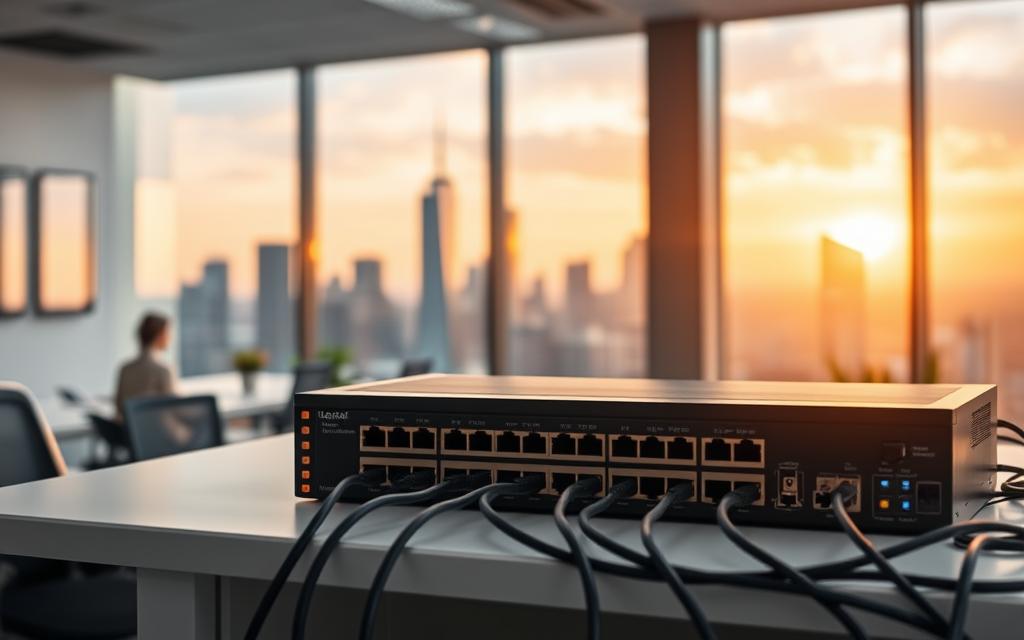

What is the Switch in Computer Network: Core Functionality Explained
Network switches are key to fast data sharing in today’s networks. They use advanced technologies to make data transfer smooth. These technologies set switches apart from basic network tools and are the backbone of today’s networks.
Packet Switching vs Circuit Switching
Most Ethernet networks use packet switching today. This is a big step up from old circuit switching. Packet switching breaks data into packets that travel alone, making better use of bandwidth and allowing for flexible routes.
Circuit switching, on the other hand, keeps a fixed path open for a conversation. It’s good for steady connections but not for changing data needs.
Packet switching is better for handling different types of network traffic. It lets many conversations use the same network at once. This boosts network use and performance.
MAC Address Learning and Forwarding
Switches learn MAC addresses to forward data smartly. They build a detailed address table that shows where devices are in the network.
Address Table Management
Switches use CAM tables to keep track of MAC addresses. When a frame comes in, the switch checks the source MAC address and updates its table.
The table changes as devices join, leave, or move. This self-updating helps switches forward data without needing manual setup. It makes network management easier.
Switches also have ageing mechanisms. These remove old entries from the table. This keeps the forwarding information up to date.
Frame Forwarding Mechanisms
Frame forwarding is the main job of switches. When a switch gets an Ethernet frame, it looks up the MAC address table to find the right port to send it to.
Switches use three main ways to forward frames:
- Store-and-forward: The switch checks the whole frame for errors before sending it.
- Cut-through: The switch starts sending the frame as soon as it reads the destination address, cutting down on delay.
- Fragment-free: The switch checks the first 64 bytes before sending, balancing speed and error checking.
Each method has its own strengths for different network needs. Store-and-forward is great for catching errors, while cut-through is faster for urgent data.
Collision Domain Management
Switches are good at managing collision domains. Each port on a switch creates its own domain, keeping traffic separate.
This stops data collisions that slow down networks in shared media setups. It gives each device its own bandwidth, making communication reliable.
Good collision domain management is key to switched networks. It’s what makes them better than old hub-based networks. It’s the heart of modern network management, focusing on speed and reliability.
| Switching Feature | Benefit | Impact on Network Performance |
|---|---|---|
| MAC Address Learning | Intelligent forwarding decisions | Reduces unnecessary traffic |
| Frame Forwarding | Efficient data transmission | Minimises latency |
| Collision Domain Separation | Dedicated bandwidth | Eliminates data collisions |
| Packet Switching | Flexible resource allocation | Maximises bandwidth utilisation |
These key features work together to make networks fast and efficient. They help switches handle more traffic with less effort. This makes modern networks better for everyone.
Types of Network Switches and Their Applications
Network switches vary in design to fit different needs and settings. Knowing about these types helps businesses pick the right switch for their network.
Unmanaged Switches: Basic Connectivity Solutions
Unmanaged switches are the simplest network devices. They work right away without needing setup. They automatically find devices and connect them using default settings.
Key features include:
- No configuration interface or options
- Fixed settings that cannot be modified
- Automatic MAC address learning and forwarding
- Typically lower cost than managed alternatives
They’re great for small offices or homes. They’re easy to use, making them perfect for those who don’t need complex features.
Managed Switches: Advanced Control and Monitoring
Managed switches offer detailed control over networks. Users can tweak and watch over network traffic through these devices. They come in two main types, each with its own set of features.
Web Smart Switches
Web smart switches are a middle ground. They have a web interface for simple setups but lack the complexity of full management.
They offer:
- Basic Quality of Service (QoS) settings
- VLAN support for network segmentation
- Port configuration and monitoring
- Web-based management interface
They’re good for growing businesses. They offer more control than unmanaged switches but don’t need full enterprise features.
Fully Managed Enterprise Switches
Fully managed switches offer top control and features. They support advanced management like SNMP and CLI. They’re key for serious enterprise networks.
They have:
- Complete network traffic management and prioritisation
- Advanced security features and access controls
- Detailed monitoring and reporting capabilities
- Support for complex network architectures
Big companies and data centres use them. They’re reliable and have lots of features.
PoE Switches: Power over Ethernet Capabilities
PoE switches send both data and power over network cables. They power devices connected to them, removing the need for separate power sources.
They’re used for:
- IP security cameras and surveillance systems
- VoIP phones and communication devices
- Wireless access points and network sensors
- IoT devices and smart building systems
This tech makes setup easier and cuts down on cables. Modern PoE can power up to 90 watts per port, supporting more devices.
Modular vs Fixed Configuration Switches
Switches can be modular or fixed. Each type has its own benefits for different needs.
Modular switches can grow with your network. You can add modules and systems as needed. They’re great for:
- Large enterprise networks with evolving requirements
- Data centres needing custom configurations
- Environments requiring high availability and redundancy
Fixed configuration switches have set ports and features. They’re cheaper and easier to manage. They’re perfect for:
- Lower initial cost and simpler deployment
- Predictable performance characteristics
- Easier maintenance and management
Small to medium businesses often choose fixed switches. But big companies might use both. Modular switches for the core and fixed for the edges.
How Network Switches Differ from Other Networking Devices
It’s important to know how network switches differ from other networking gear. They might look the same, but they work in different ways. This is key for building efficient networks.

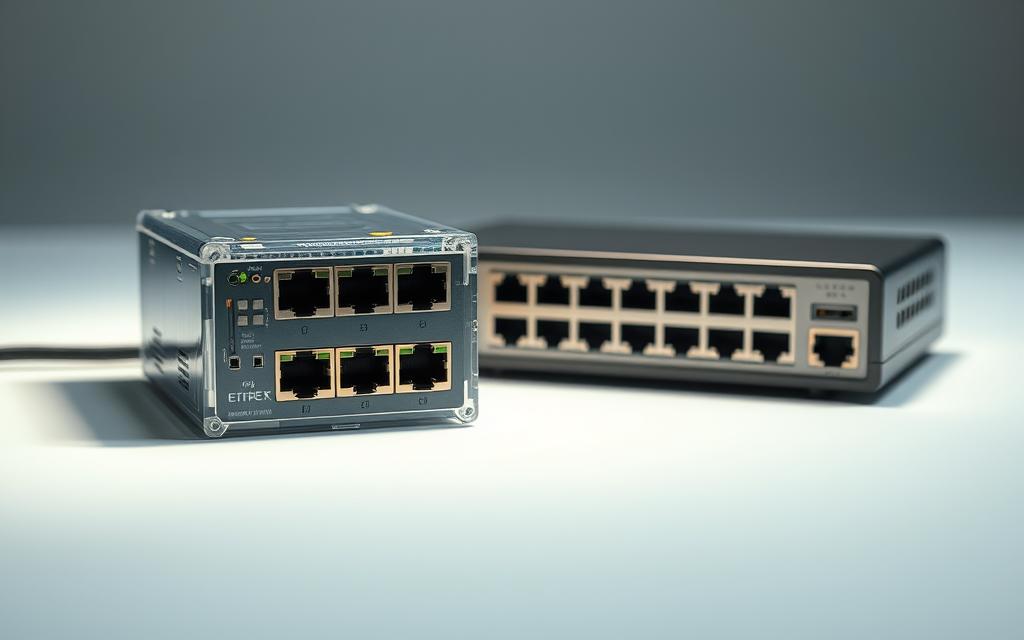

Switch vs Hub: Intelligence in Data Forwarding
Hubs and switches handle data in different ways. Hubs just send all data to every port, without checking who it’s for. This can slow down the network and make it less secure.
Switches, on the other hand, use MAC addresses to decide where to send data. They learn these addresses and send data only to the right port. This makes the network run smoother and faster.
Switch vs Router: Layer 2 vs Layer 3 Operations
Switches and routers work at different levels of the OSI model. Switches handle data at Layer 2, using MAC addresses. Routers work at Layer 3, using IP addresses to connect different networks.
Switches are great for local network efficiency. Routers are key for connecting different networks and getting online. Today, we use both in our networks.
Switch vs Bridge: Scalability and Port Density
Bridges and switches are similar but different in scale and power. Bridges connect two networks but have few ports. Switches, on the other hand, can handle many more connections.
Switches are much more advanced than bridges. They can connect dozens or hundreds of devices. This makes them essential for big networks.
Switches can talk to many devices at once. Bridges can only handle one conversation at a time. This is why switches are better for big networks.
| Device Type | Operational Layer | Intelligence Level | Typical Port Count | Primary Function |
|---|---|---|---|---|
| Hub | Layer 1 | None (Broadcast) | 4-12 | Signal repetition |
| Bridge | Layer 2 | Basic filtering | 2-4 | Segment connection |
| Switch | Layer 2/3 | High (MAC learning) | 8-48+ | Efficient forwarding |
| Router | Layer 3 | Network-level | 2-8+ | Inter-network routing |
This comparison shows why switches are key in modern networks. They’re smart, can handle lots of devices, and work well with routers. This makes them better than hubs and bridges for today’s networks.
Key Benefits of Using Network Switches
Network switches bring big advantages to how data moves in today’s world. They make networks run better and safer, helping businesses grow.
Enhanced Network Performance and Bandwidth
Switches make networks faster by giving each device its own path for data. Unlike hubs, which share paths, switches create separate channels for each device.
This means less chance of data getting mixed up and more efficient data flow. It also helps manage bandwidth better, avoiding delays and lost data.
Improved Security Features
Today’s switches have strong security features to keep networks safe. They use MAC address filtering to stop unknown devices from joining the network.
They also have port security to limit access to certain devices. These features add layers of protection against threats.
Network Segmentation and Traffic Management
Switches use VLAN technology for better network organisation. This lets networks be split up without needing to change cables.
It helps manage traffic by keeping different parts of the network separate. This way, important tasks get priority, and bandwidth is used wisely.
Scalability for Growing Networks
One of the best things about switches is how they help networks grow. Adding more switches or upgrading existing ones is easy.
This growth doesn’t hurt performance or security. Many switches are designed to grow with businesses, supporting their expansion plans.
They handle more devices without slowing down. This makes them perfect for companies that are looking to expand.
Implementing Switches in Various Network Environments
Network switches are key in many different networks. Each one needs special settings and features. The way you set them up changes based on the size of the network, how fast it needs to be, and other factors.
Small Office/Home Office (SOHO) Applications
SOHO networks focus on being easy and affordable. They use simple switches that work right away without needing to be set up. These switches usually have 5-8 ports and can handle speeds up to 1 Gbps.
When setting up SOHO networks, consider a few things:
- They need to be small for tight spaces.
- They should be quiet for places where people live or work together.
- They should use less energy to save money.
- They need basic quality of service (QoS) for video calls.
Enterprise Network Deployments
Big companies need advanced switches that can handle lots of users. These switches are managed, which means they can be controlled and watched over. They are the heart of these networks.
What’s important for big networks includes:
- Support for VLANs to split the network.
- Strong security like 802.1X.
- Quality of Service (QoS) for important traffic.
- Redundancy to keep the network running smoothly.
- Tools for managing the network from one place.
These switches work at Layer 2 or Layer 3. They handle complex routes within the company’s network.
Data Centre Switching Solutions
Data centre switches are the top of the line. They’re for places where speed and reliability are everything. They handle a lot of data fast.
Modern data centres use special designs. They have:
- Non-blocking fabric architecture.
- Ports that go up to 100 Gbps and more.
- Tools for managing traffic.
- Parts that can be changed without stopping the network.
- Designs that save energy but are very fast.
They also have special features like setting themselves up automatically and switching over if needed.
Industrial and Specialised Environments
Industrial networks face special challenges. They need switches that can handle tough conditions. These switches must work in extreme temperatures, handle vibrations, and deal with electrical noise.
Industrial switches have:
- They can work in very cold or very hot temperatures.
- Coatings to protect against moisture and dirt.
- They can be mounted easily in control panels.
- They support special industrial protocols.
- They are very reliable and last a long time.
They often have fibre optic connections for better performance in noisy places. They also have extra power inputs for important systems.
| Environment Type | Primary Switch Type | Key Requirements | Typical Port Speed |
|---|---|---|---|
| SOHO | Unmanaged | Cost-effectiveness, simplicity | 1 Gbps |
| Enterprise | Managed L2/L3 | Security, management, scalability | 1-10 Gbps |
| Data Centre | High-density modular | Performance, reliability, low latency | 10-100 Gbps |
| Industrial | Ruggedised managed | Durability, environmental resistance | 100 Mbps-1 Gbps |
Choosing the right switch is all about understanding what you need now and what you might need later. The best switch meets your current needs and is ready for the future. It also works well and efficiently.
Conclusion
Network switches are key to modern computer networking. They help data move efficiently across different settings. This summary shows how they’ve grown from simple tools to smart systems.
They now improve performance, boost security, and manage traffic well. Getting the right switch is vital for any organisation. It affects how well your network works and grows.
Choosing the right switch depends on your needs. Whether it’s for basic or advanced use, the right choice matters. This article has shown how different switches meet different needs.
Networking is changing, with more automation, better security, and cloud integration. Network switches will keep playing a big role. They ensure data flows smoothly in complex digital worlds.
Knowing how switches work is key to building strong networks. This guide helps you understand their role. It’s essential for networks that can handle the future.
